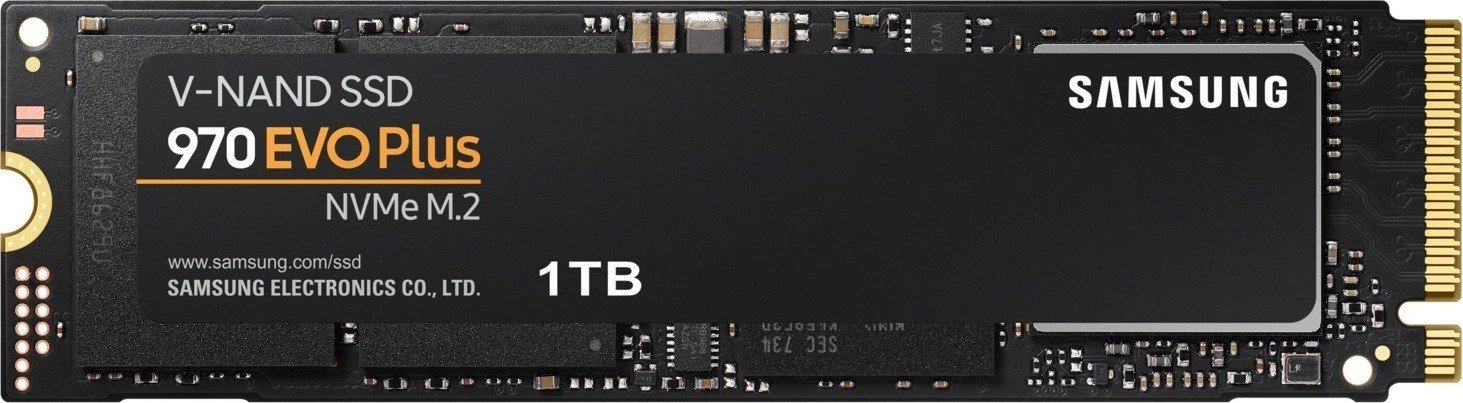

Samsung SSD 970 EVO Plus 1TB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.3 |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x22x2.38mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3500 MB/s |
|---|---|
| Sequential Write | 3300 MB/s |
| 4K Read (IOPS) | 600K |
| 4K Write (IOPS) | 550K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 1024 MB |
| Cache Note | LPDDR4; Dynamic SLC cache 6-42GB |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Samsung |
| NAND Layers | 96 |
| Controller | Samsung Phoenix/Elpis |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 600 TB |
|---|---|
| MTBF | 1.5 million hours |
| Encryption | 256bit AES, TCG Opal 2.0 |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
