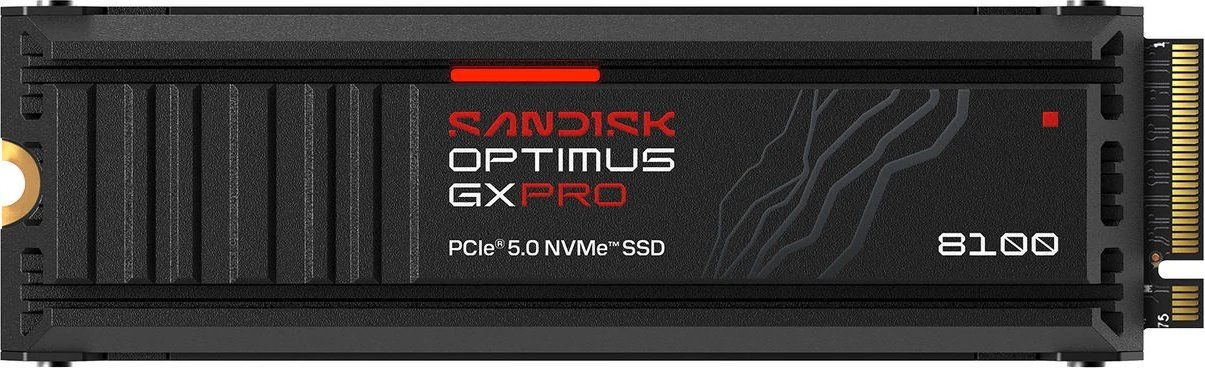

SanDisk Optimus GX PRO 8100 1TB with Heatsink
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0 |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x25x9.76mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 14900 MB/s |
|---|---|
| Sequential Write | 11000 MB/s |
| 4K Read (IOPS) | 1,600K |
| 4K Write (IOPS) | 2,400K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | SanDisk |
Endurance
| Endurance (TBW) | 600 TB |
|---|---|
| MTBF | 1.75 million hours |
| Encryption | TCG Opal 2.02 |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 9.8 mm |
| Heatsink Note | Dimensions include heatsink |
