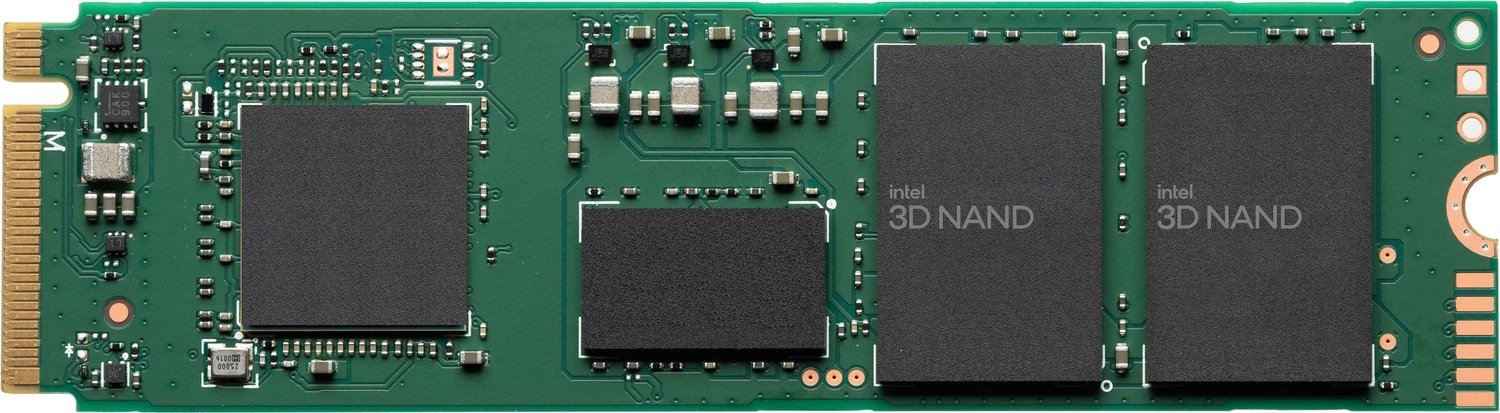

Solidigm SSD 670p 512GB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 512 GB |
| Dimensions | 80x22x2.38mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3000 MB/s |
|---|---|
| Sequential Write | 1600 MB/s |
| 4K Read (IOPS) | 110K |
| 4K Write (IOPS) | 315K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 256 MB |
| Cache Note | DDR3L-1866; Dynamic SLC cache 6-70GB |
NAND and Controller
| NAND Type | QLC |
|---|---|
| NAND Maker | Intel |
| NAND Layers | 144 |
| Controller | Silicon Motion SM2265G |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 185 TB |
|---|---|
| MTBF | 1.6 million hours |
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
