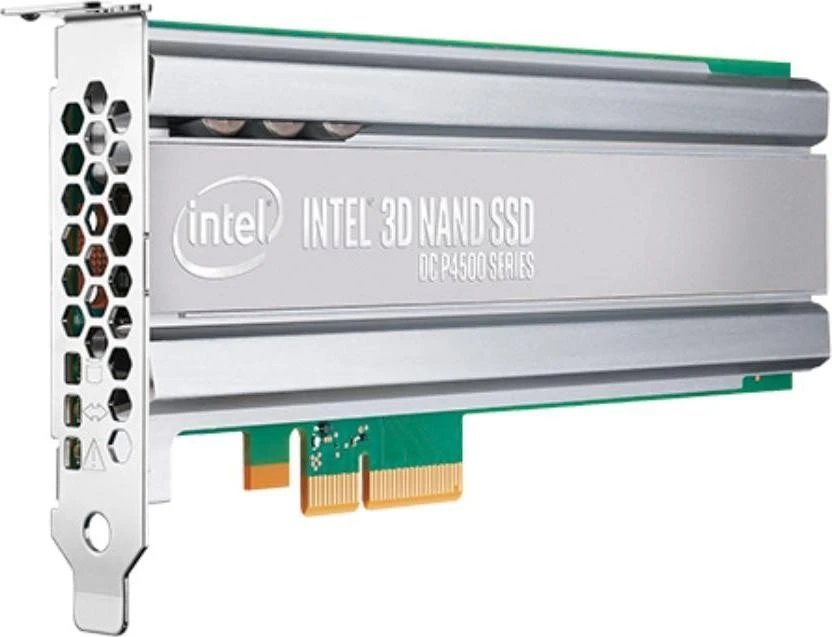

Solidigm SSD DC-P4500 4TB AIC
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.2 |
| Form Factor | AIC |
| Capacity | 4000 GB |
| Dimensions | 168x69x19mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3270 MB/s |
|---|---|
| Sequential Write | 1860 MB/s |
| 4K Read (IOPS) | 687K |
| 4K Write (IOPS) | 62K |
| Cache Note | Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Micron |
| NAND Layers | 32 |
| Controller | Solidigm (Intel) Gen4 |
| Controller Channels | 12 |
Endurance
| Endurance (TBW) | 4,600 TB |
|---|---|
| MTBF | 2 million hours |
| Encryption | 256bit AES |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Note | AIC card heatsink |
