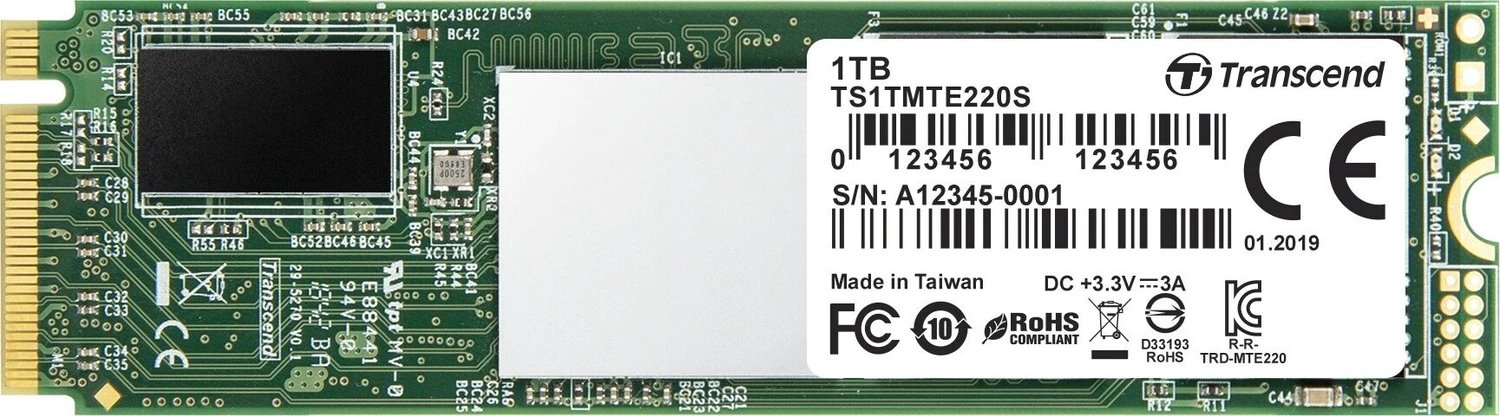

Transcend MTE220S SSD 1TB
NVMe · 3 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Dimensions | 80x22x3.58mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3400 MB/s |
|---|---|
| Sequential Write | 1900 MB/s |
| 4K Read (IOPS) | 300K |
| 4K Write (IOPS) | 340K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DDR3 |
NAND and Controller
| NAND Type | TLC |
|---|
Endurance
| Endurance (TBW) | 2,200 TB |
|---|---|
| MTBF | 2 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
