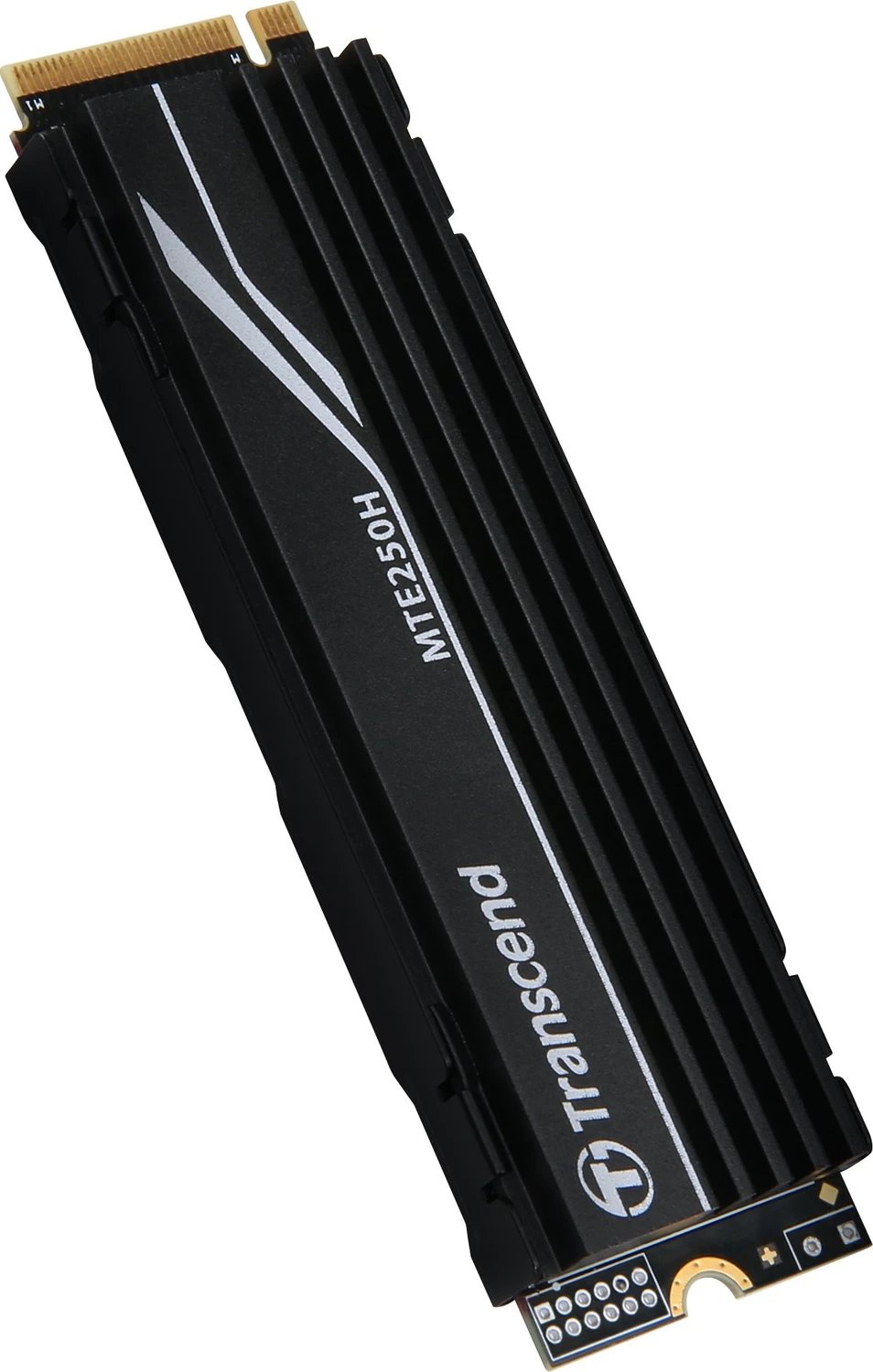

Transcend MTE250H SSD 2TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | M.2 2280 |
| Capacity | 2000 GB |
| Dimensions | 80x23.1x9.2mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 7100 MB/s |
|---|---|
| Sequential Write | 6500 MB/s |
| 4K Read (IOPS) | 530K |
| 4K Write (IOPS) | 420K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | DDR4 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| Controller | Silicon Motion SM2264 |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 1,560 TB |
|---|---|
| MTBF | 3 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Height | 9.2 mm |
| Heatsink Note | Dimensions include heatsink |
