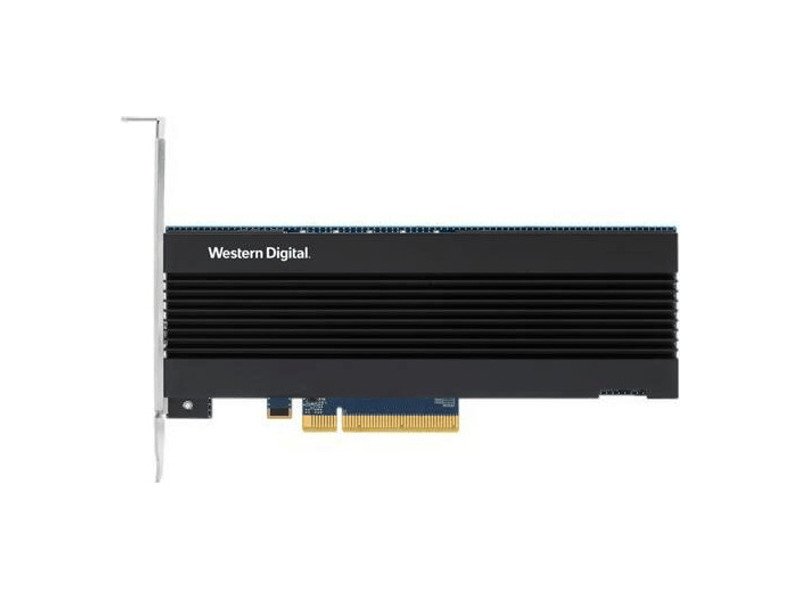

Western Digital Ultrastar DC SN200 - 3DWPD 6.4TB
NVMe · 3 · 8
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 8 |
| Protocol | NVMe 1.2 |
| Form Factor | AIC |
| Capacity | 6400 GB |
| Dimensions | 168x69x14mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 3350 MB/s |
|---|---|
| Sequential Write | 2100 MB/s |
| 4K Read (IOPS) | 835K |
| 4K Write (IOPS) | 200K |
| Cache Note | Power-Loss Protection |
NAND and Controller
| NAND Type | MLC |
|---|---|
| NAND Maker | Toshiba |
Endurance
| Endurance (TBW) | 35,000 TB |
|---|---|
| MTBF | 2 million hours |
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Note | AIC card heatsink |
