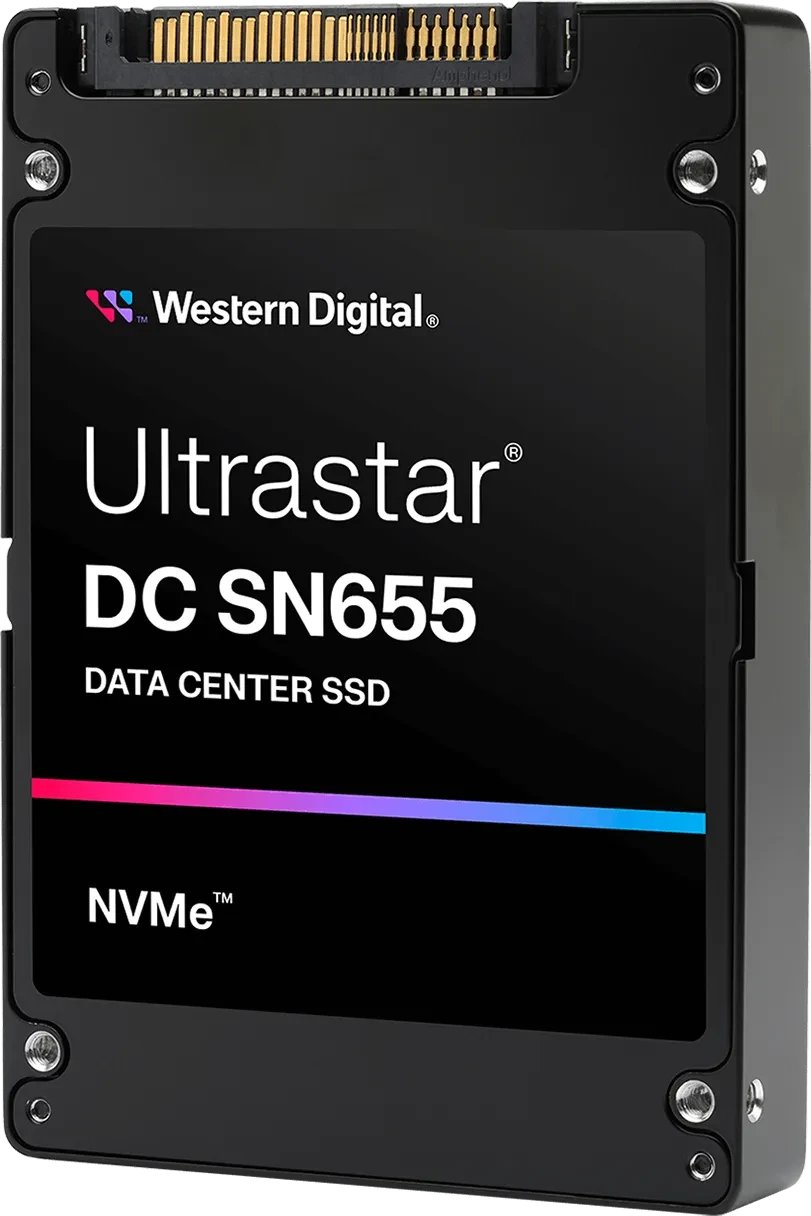

Western Digital Ultrastar DC SN655 - 1DWPD 30.72TB
NVMe · 4 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 4 |
| PCIe Lanes | 4 |
| Protocol | NVMe 1.4 |
| Form Factor | U.3 |
| Capacity | 30720 GB |
| Dimensions | 100.45x69.85x15mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 6100 MB/s |
|---|---|
| Sequential Write | 3400 MB/s |
| 4K Read (IOPS) | 1,100K |
| 4K Write (IOPS) | 125K |
| Cache Note | Power-Loss Protection |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Kioxia |
| NAND Layers | 112 |
Endurance
| Endurance (TBW) | 56,064 TB |
|---|---|
| MTBF | 2.5 million hours |
| Encryption | 256bit AES, Instant Secure Erase (ISE) |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
