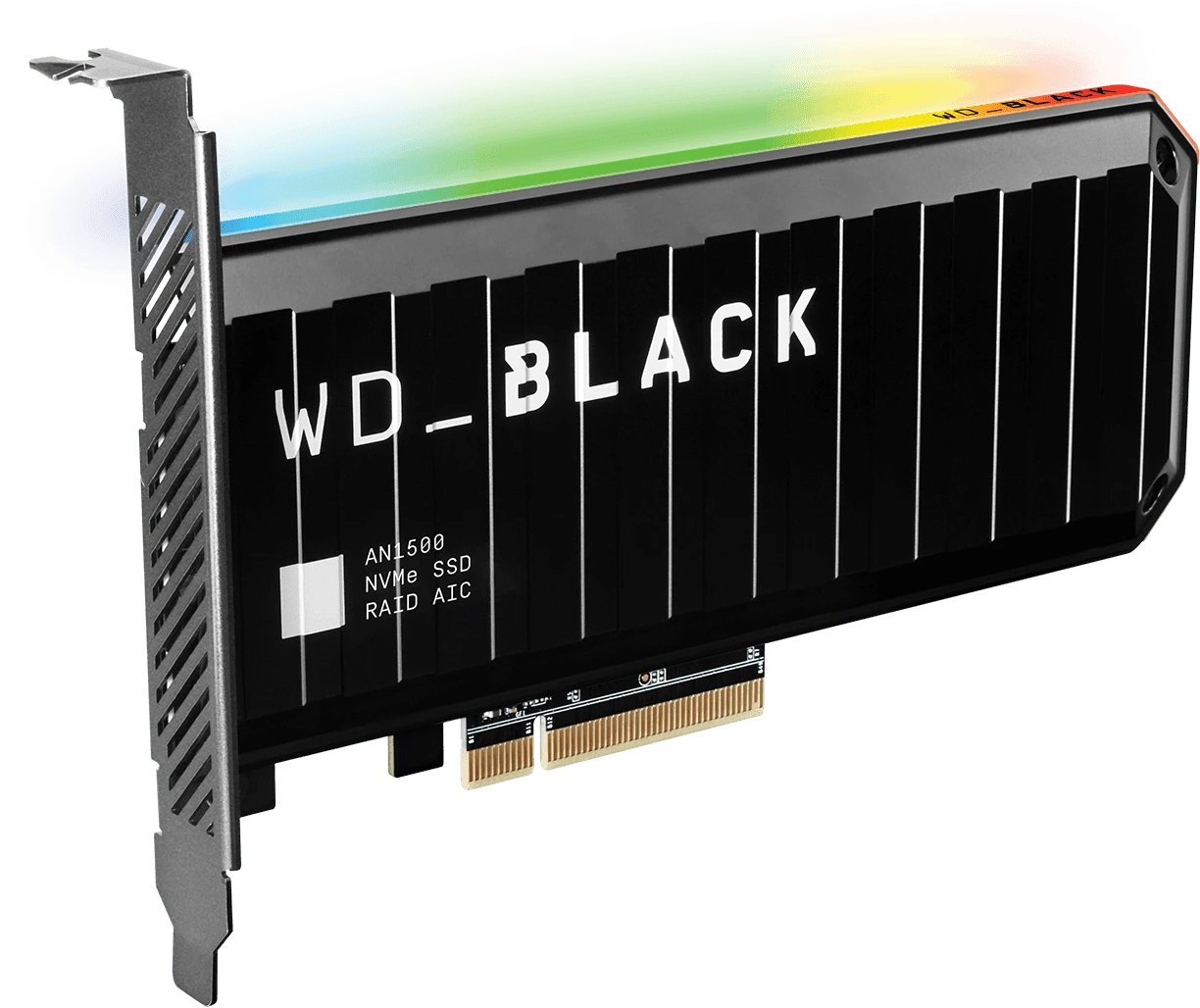

Western Digital WD_BLACK AN1500 1TB
NVMe · 3 · 8
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 3 |
| PCIe Lanes | 8 |
| Protocol | NVMe |
| Form Factor | AIC |
| Capacity | 1000 GB |
| Dimensions | 176x72x13mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 6500 MB/s |
|---|---|
| Sequential Write | 4100 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Note | LPDDR4 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Kioxia |
| NAND Layers | 96 |
| Controller | Marvell 88NR2241-BWW2 |
Endurance
| Endurance (TBW) | 300 TB |
|---|---|
| Warranty | 5 years |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Note | AIC card heatsink |
