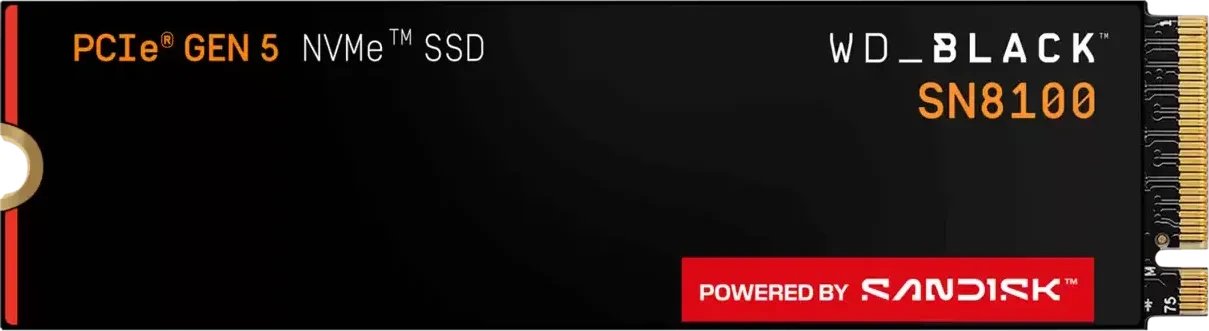

Western Digital WD_BLACK SN8100 NVMe SSD 8TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe 2.0 |
| Form Factor | M.2 2280 |
| Capacity | 8000 GB |
| Dimensions | 80x22x3.88mm |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 14900 MB/s |
|---|---|
| Sequential Write | 13200 MB/s |
| 4K Read (IOPS) | 2,200K |
| 4K Write (IOPS) | 2,400K |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 4096 MB |
| Cache Note | DDR4 |
NAND and Controller
| NAND Type | TLC |
|---|---|
| NAND Maker | Kioxia |
| NAND Layers | 218 |
| Controller | Silicon Motion SM2508 |
| Controller Channels | 8 |
Endurance
| Endurance (TBW) | 4,800 TB |
|---|---|
| MTBF | 1.75 million hours |
| Encryption | 256bit AES, TCG Opal 2.02 |
| Warranty | 5 years |
Heatsink
| Heatsink | No |
|---|
