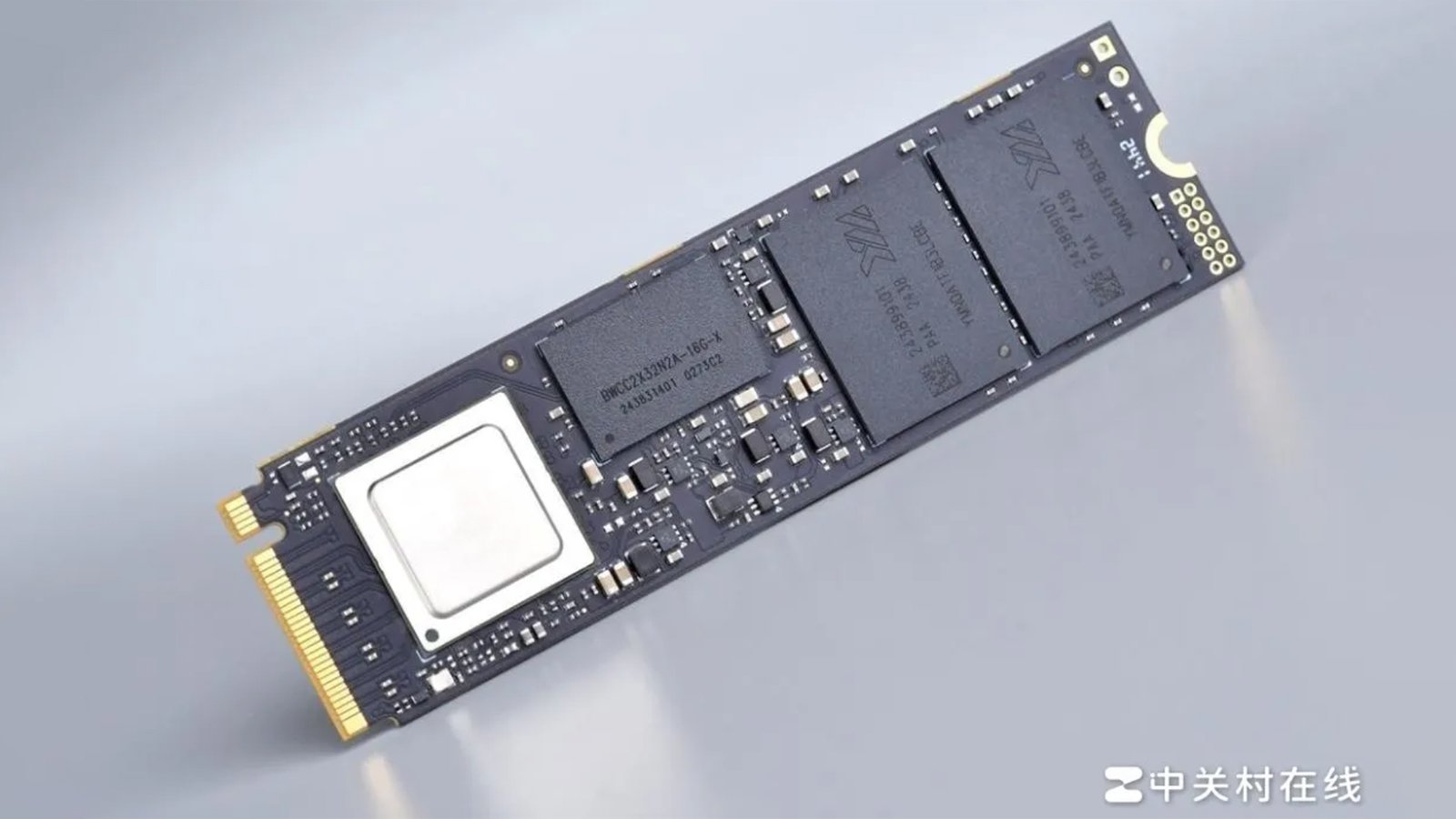

ZHITAI TiPro9000 1TB
NVMe · 5 · 4
General
| Interface | NVMe |
|---|---|
| PCIe Generation | 5 |
| PCIe Lanes | 4 |
| Protocol | NVMe |
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Performance
| Sequential Read | 14000 MB/s |
|---|---|
| Sequential Write | 12500 MB/s |
| DRAM Cache | Yes |
| Cache Type | DRAM |
| Cache Size | 2048 MB |
| Cache Note | DRAM cache confirmed as 2GB LPDDR4X per independent teardown of the 2TB variant; exact 1TB DRAM capacity not independently confirmed. Uses a Silicon Motion SM2508 controller (unmarked on the PCB per teardown) with YMTC's 5th-generation 3D TLC NAND (Xtacking 4.0 architecture). |
Heatsink
| Heatsink | Yes |
|---|---|
| Heatsink Note | Ships with a factory-installed detachable heatsink; won the Red Dot Design Award 2025. |
