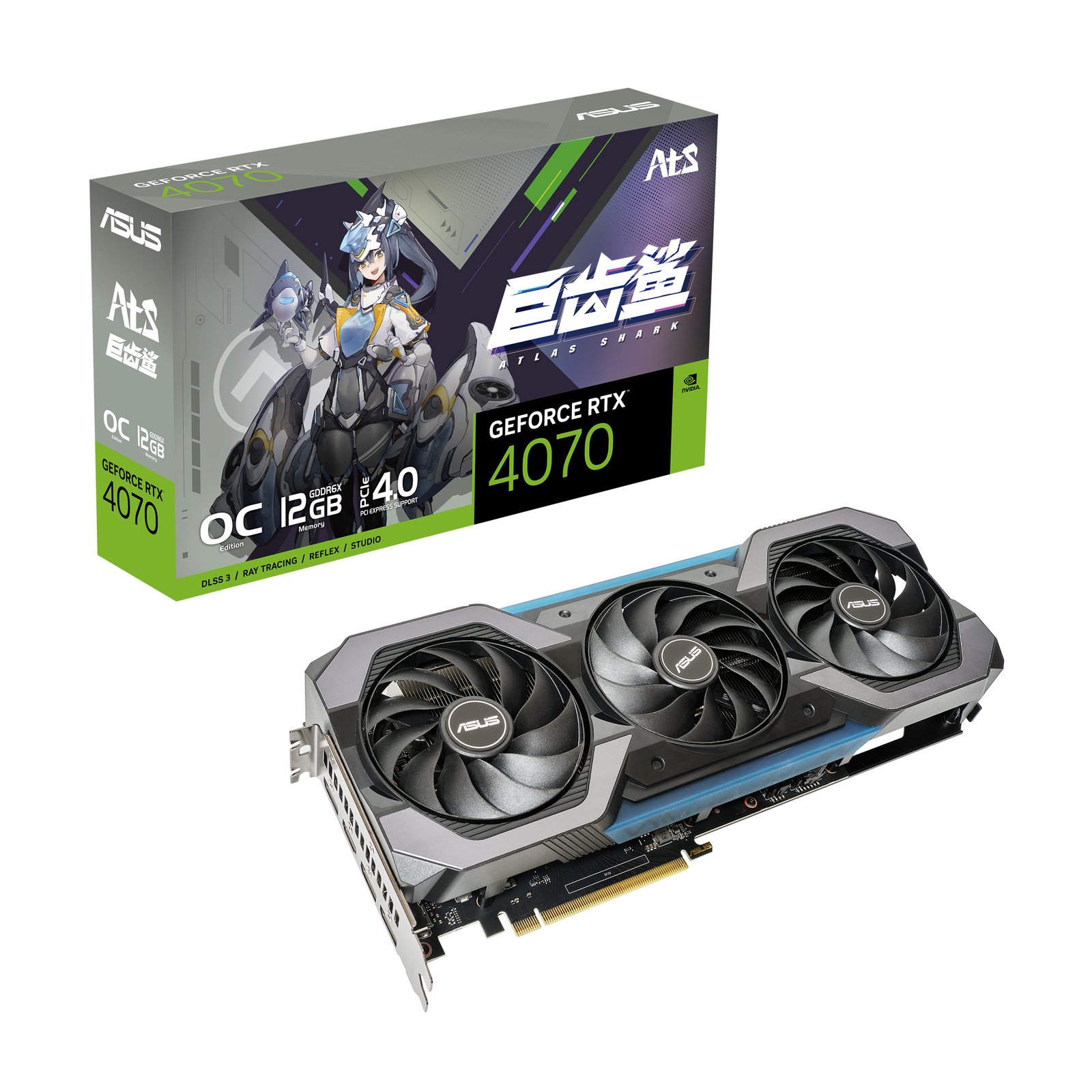

ASUS ATS RTX 4070 GAMING MEGALODON
RTX 40 · ATS RTX 4070 GAMING MEGALODON · RTX 4070
General
| Series | RTX 40 |
|---|---|
| Model | ATS RTX 4070 GAMING MEGALODON |
| Chip | RTX 4070 |
| Launch Year | 2023 |
| Release Date | 4/12/2023 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Ada Lovelace |
|---|---|
| GPU Die | AD104 (AD104-250-A1) |
| Foundry | TSMC · 5 nm |
| Transistors | 35.8 billion |
| Die Size | 294 mm² |
Cores
| Shading Units | 5888 |
|---|---|
| TMUs | 184 |
| ROPs | 64 |
| SM / CU | 46 |
| Tensor Cores | 184 |
| RT Cores | 46 |
| L2 Cache | 36 MB |
Memory
| VRAM | 12 GB |
|---|---|
| Memory Type | GDDR6X |
| Memory Bus | 192-bit |
| Memory Speed | 21 Gbps |
Clocks and Power
| Base Clock | 1920 MHz |
|---|---|
| Boost Clock | 2475 MHz |
| TDP | 200 W |
| Power Connector | 8-pin |
Compute (TFLOPS)
| FP32 | 29.15 TFLOPS |
|---|---|
| FP16 | 29.15 TFLOPS |
| FP64 | 0.46 TFLOPS |
Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 317 mm |
|---|---|
| Width | 54 mm |
| Height | 136 mm |
| Slot Width | 3 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
