ASUS ProArt RTX 4070

RTX 40 · ProArt RTX 4070 · RTX 4070

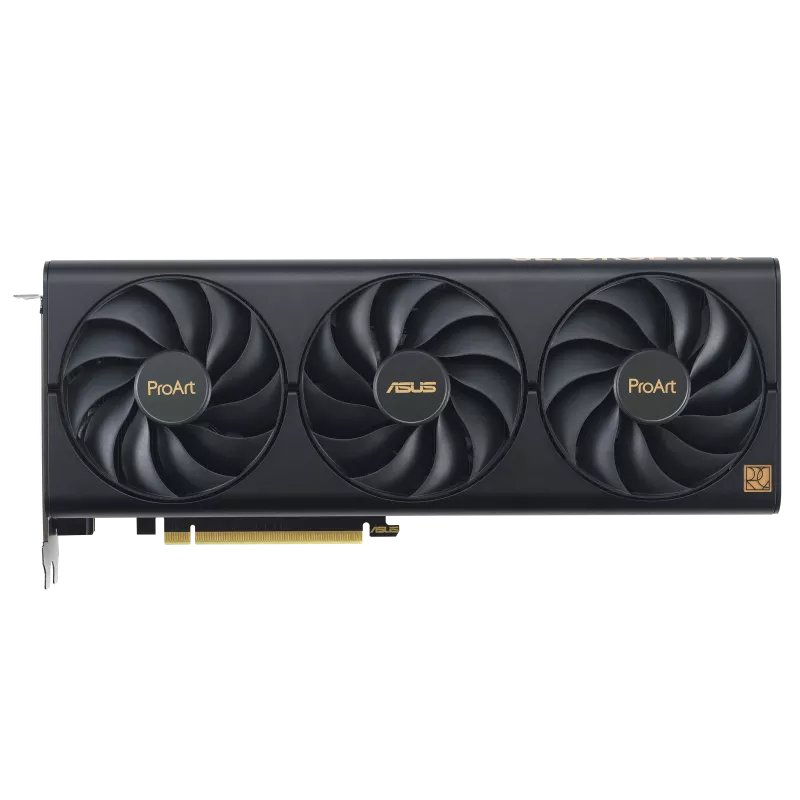

ASUS ProArt RTX 4070 product image

ASUS ProArt RTX 4070 product image 1

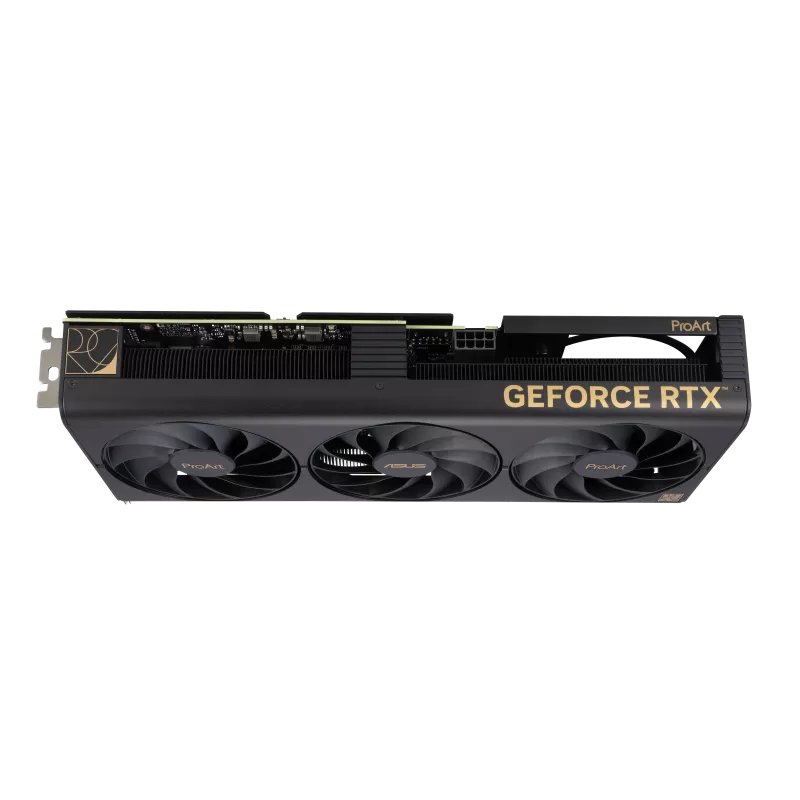

ASUS ProArt RTX 4070 product image 2

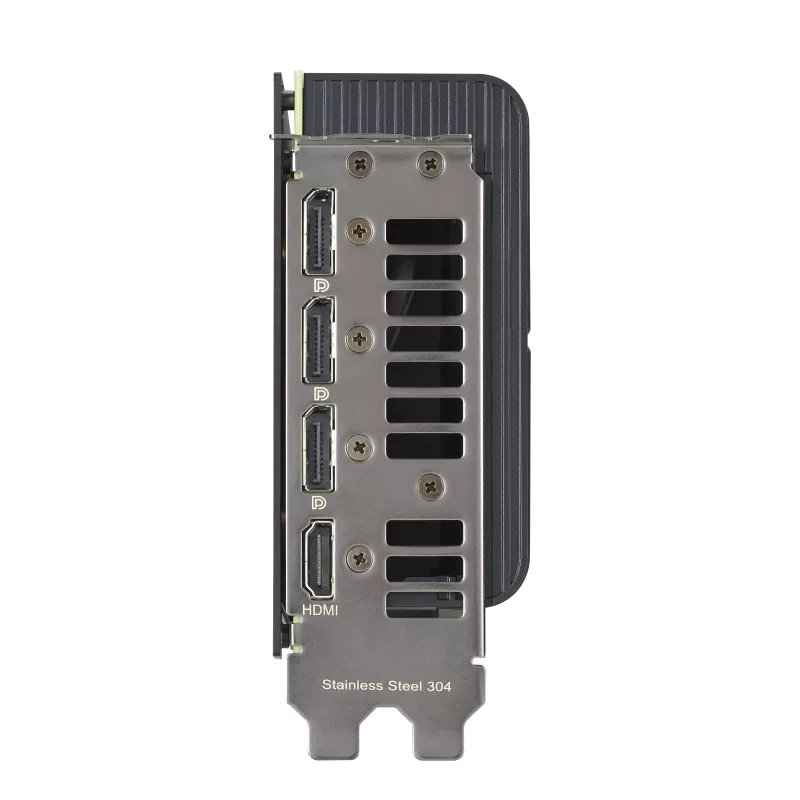

ASUS ProArt RTX 4070 product image 3

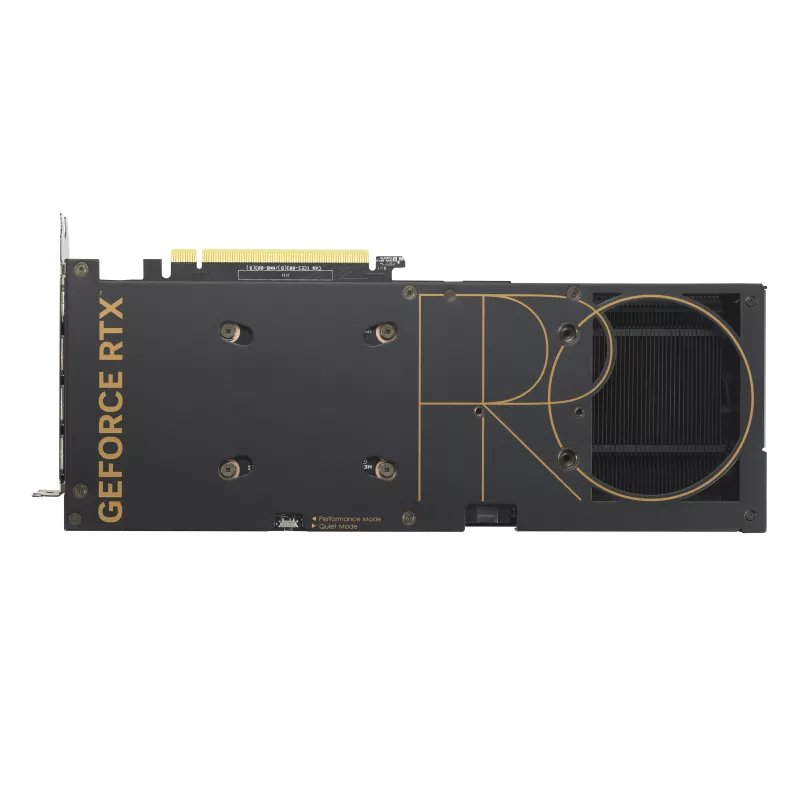

ASUS ProArt RTX 4070 product image 4

General

Series	RTX 40
Model	ProArt RTX 4070
Chip	RTX 4070
Launch Year	2023
Release Date	4/12/2023
Launch MSRP	$599

Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

Architecture	Ada Lovelace
GPU Die	AD104 (AD104-250-A1)
Foundry	TSMC · 5 nm
Transistors	35.8 billion
Die Size	294 mm²

Cores

Shading Units	5888
TMUs	184
ROPs	64
SM / CU	46
Tensor Cores	184
RT Cores	46
L2 Cache	36 MB

Memory

VRAM	12 GB
Memory Type	GDDR6X
Memory Bus	192-bit
Memory Speed	21 Gbps

Clocks and Power

Base Clock	1920 MHz
Boost Clock	2475 MHz
TDP	200 W
Power Connector	8-pin

Compute (TFLOPS)

FP32	29.15 TFLOPS
FP16	29.15 TFLOPS
FP64	0.46 TFLOPS

Display Outputs

HDMI	1×
DisplayPort	3×

Cooling

Fan Count	3
Liquid Cooling	✗ No

Physical

Length	300 mm
Width	50 mm
Height	120 mm
Slot Width	2.5 slot

Interface

PCIe Version	4.0
PCIe Lanes	x16
