ASUS DUAL RTX 4060 Ti WHITE

RTX 40 · DUAL RTX 4060 Ti WHITE · RTX 4060 Ti

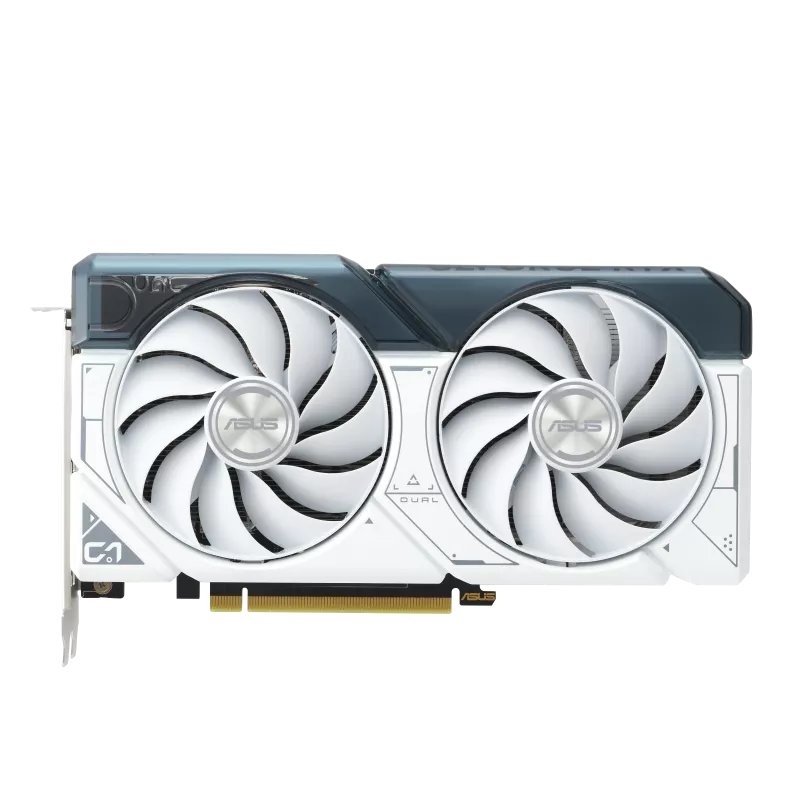

ASUS DUAL RTX 4060 Ti WHITE product image

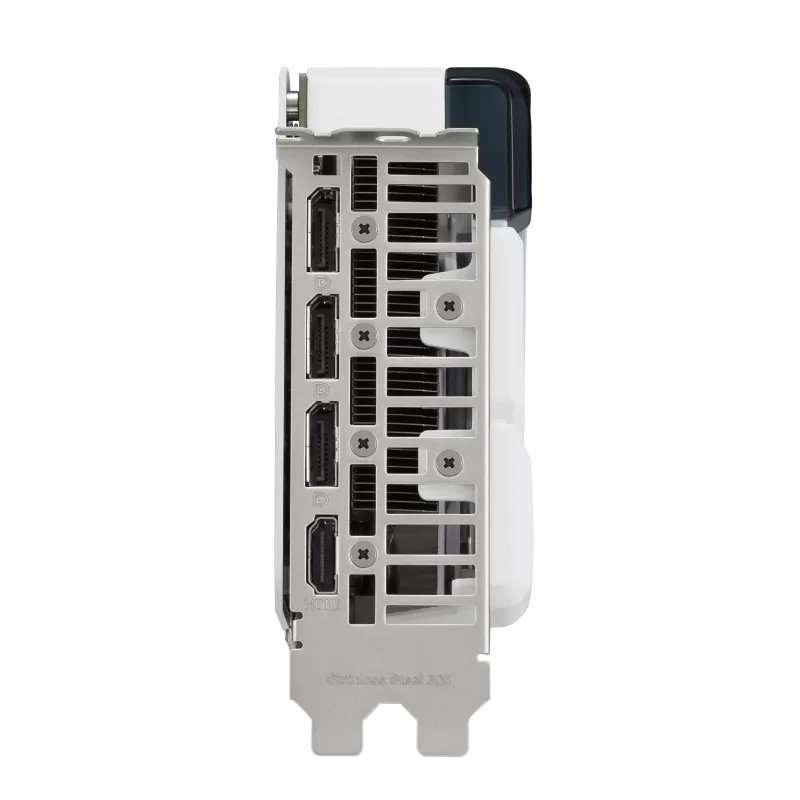

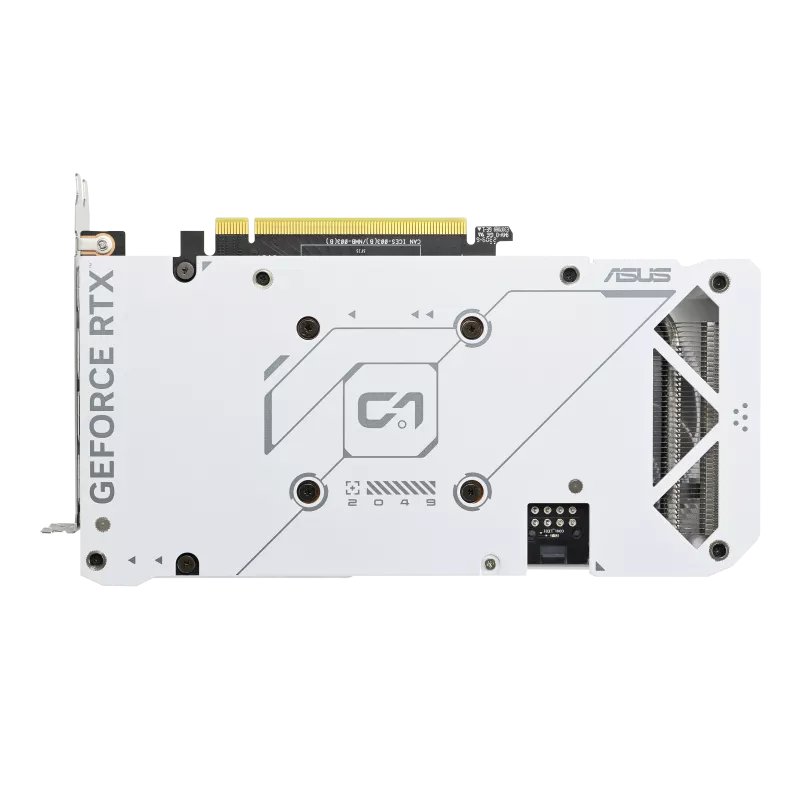

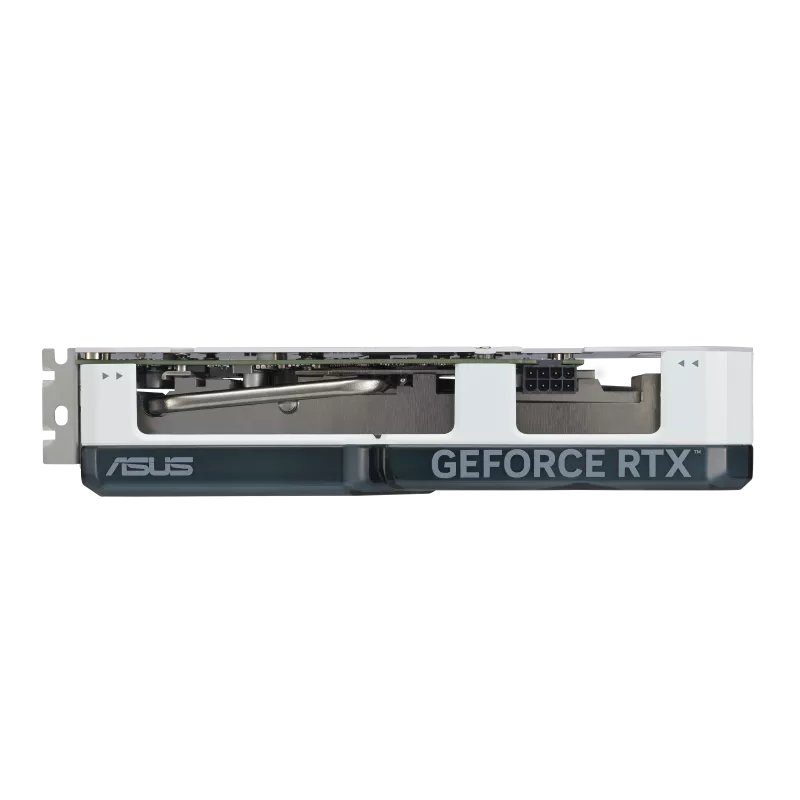

ASUS DUAL RTX 4060 Ti WHITE product image 1ASUS DUAL RTX 4060 Ti WHITE product image 2ASUS DUAL RTX 4060 Ti WHITE product image 3ASUS DUAL RTX 4060 Ti WHITE product image 4

General

SeriesRTX 40
ModelDUAL RTX 4060 Ti WHITE
ChipRTX 4060 Ti
Launch Year2023
Release Date5/24/2023
Launch MSRP$399
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAda Lovelace
GPU DieAD106 (AD106-350-A1)
FoundryTSMC · 5 nm
Transistors22.9 billion
Die Size188 mm²

Cores

Shading Units4352
TMUs136
ROPs48
SM / CU34
Tensor Cores136
RT Cores34
L2 Cache32 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus128-bit
Memory Speed18 Gbps

Clocks and Power

Base Clock2310 MHz
Boost Clock2535 MHz
TDP160 W
Power Connector8-pin
Recommended PSU450 W

Compute (TFLOPS)

FP3222.06 TFLOPS
FP1622.06 TFLOPS
FP640.34 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length227 mm
Width50 mm
Height123 mm
Slot Width2.5 slot

Interface

PCIe Version4.0
PCIe Lanesx8

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 8.9
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (8th Gen, max 8 sessions)
1x NVDEC (5th Gen)
Encoding
AV1 (YUV 4:2:0)
H.265 (4K YUV 4:2:0/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame)
H.264 (YUV 4:2:0/4:4:4, Lossless)
Decoding
AV1 (8bit/10bit)
H.265 (8/10/12bit 4:2:0, 8/10/12bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8/10/12bit)
VP8
VC-1
MPEG-2
MPEG-1
