ASUS ROG STRIX RTX 4060 Ti GAMING OC

RTX 40 · ROG STRIX RTX 4060 Ti GAMING OC · RTX 4060 Ti

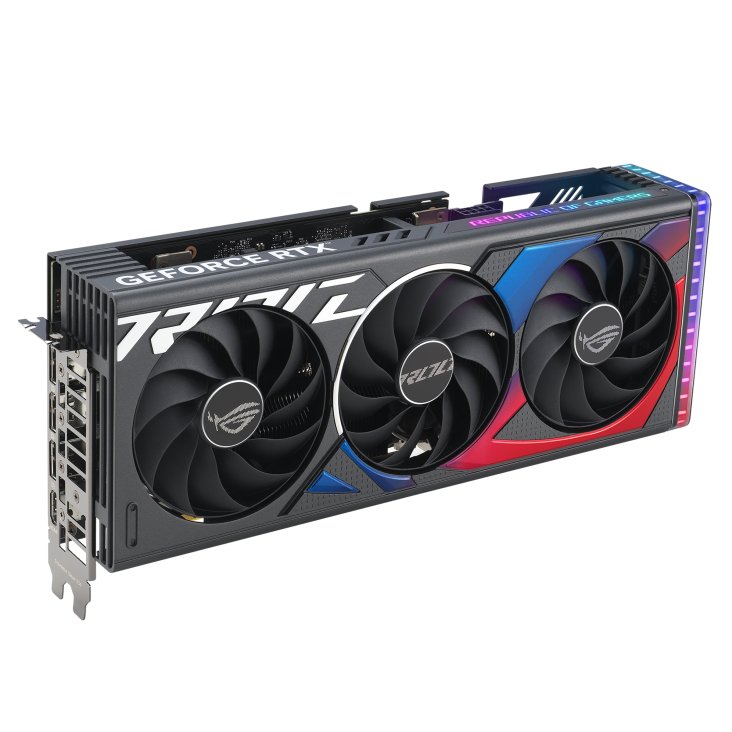

ASUS ROG STRIX RTX 4060 Ti GAMING OC product image

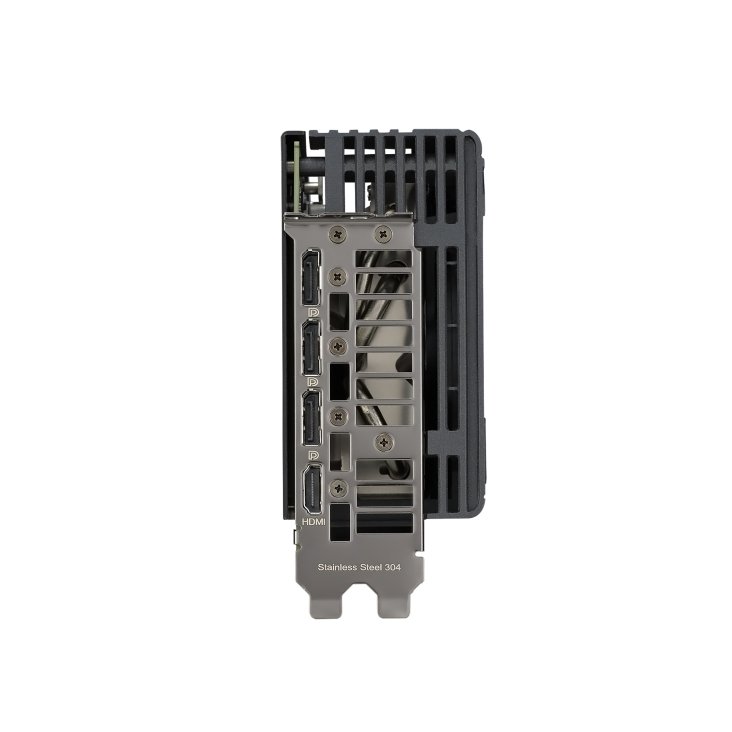

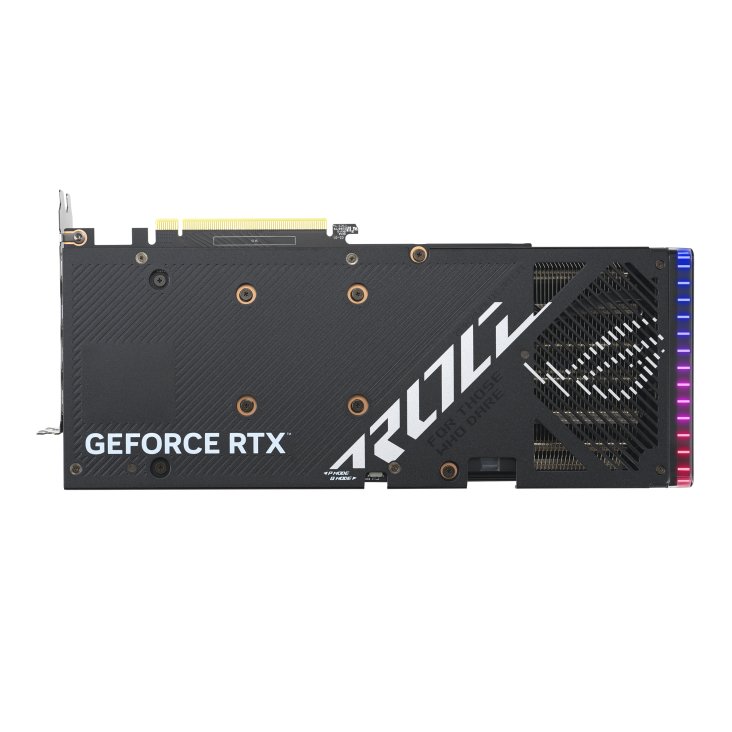

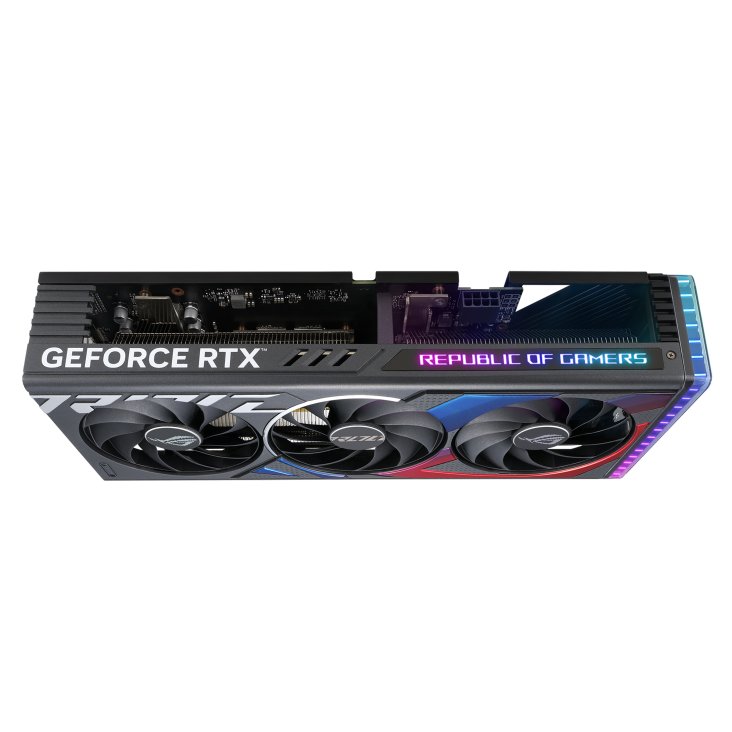

ASUS ROG STRIX RTX 4060 Ti GAMING OC product image 1ASUS ROG STRIX RTX 4060 Ti GAMING OC product image 2ASUS ROG STRIX RTX 4060 Ti GAMING OC product image 3ASUS ROG STRIX RTX 4060 Ti GAMING OC product image 4

General

SeriesRTX 40
ModelROG STRIX RTX 4060 Ti GAMING OC
ChipRTX 4060 Ti
Launch Year2023
Release Date5/24/2023
Launch MSRP$399
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAda Lovelace
GPU DieAD106 (AD106-350-A1)
FoundryTSMC · 5 nm
Transistors22.9 billion
Die Size188 mm²

Cores

Shading Units4352
TMUs136
ROPs48
SM / CU34
Tensor Cores136
RT Cores34
L2 Cache32 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus128-bit
Memory Speed18 Gbps

Clocks and Power

Base Clock2310 MHz
Boost Clock2685 MHz
TDP160 W
Power Connector8-pin
Recommended PSU450 W

Compute (TFLOPS)

FP3222.06 TFLOPS
FP1622.06 TFLOPS
FP640.34 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length311 mm
Width62 mm
Height134 mm
Slot Width3.1 slot

Interface

PCIe Version4.0
PCIe Lanesx8

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 8.9
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (8th Gen, max 8 sessions)
1x NVDEC (5th Gen)
Encoding
AV1 (YUV 4:2:0)
H.265 (4K YUV 4:2:0/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame)
H.264 (YUV 4:2:0/4:4:4, Lossless)
Decoding
AV1 (8bit/10bit)
H.265 (8/10/12bit 4:2:0, 8/10/12bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8/10/12bit)
VP8
VC-1
MPEG-2
MPEG-1
