ASUS ROG STRIX RTX 2080 Ti GAMING OC

RTX 20 · ROG STRIX RTX 2080 Ti GAMING OC · RTX 2080 Ti

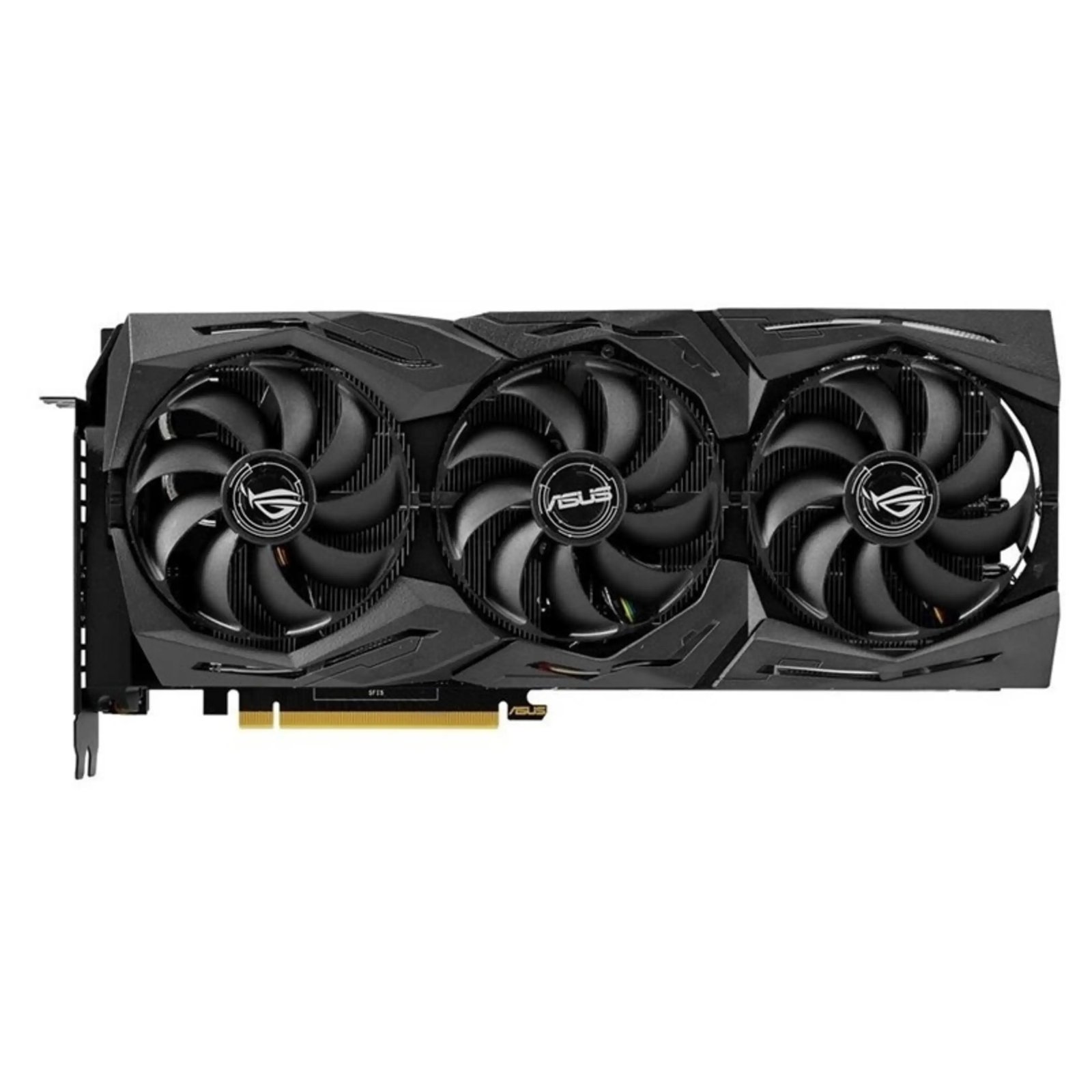

ASUS ROG STRIX RTX 2080 Ti GAMING OC product image

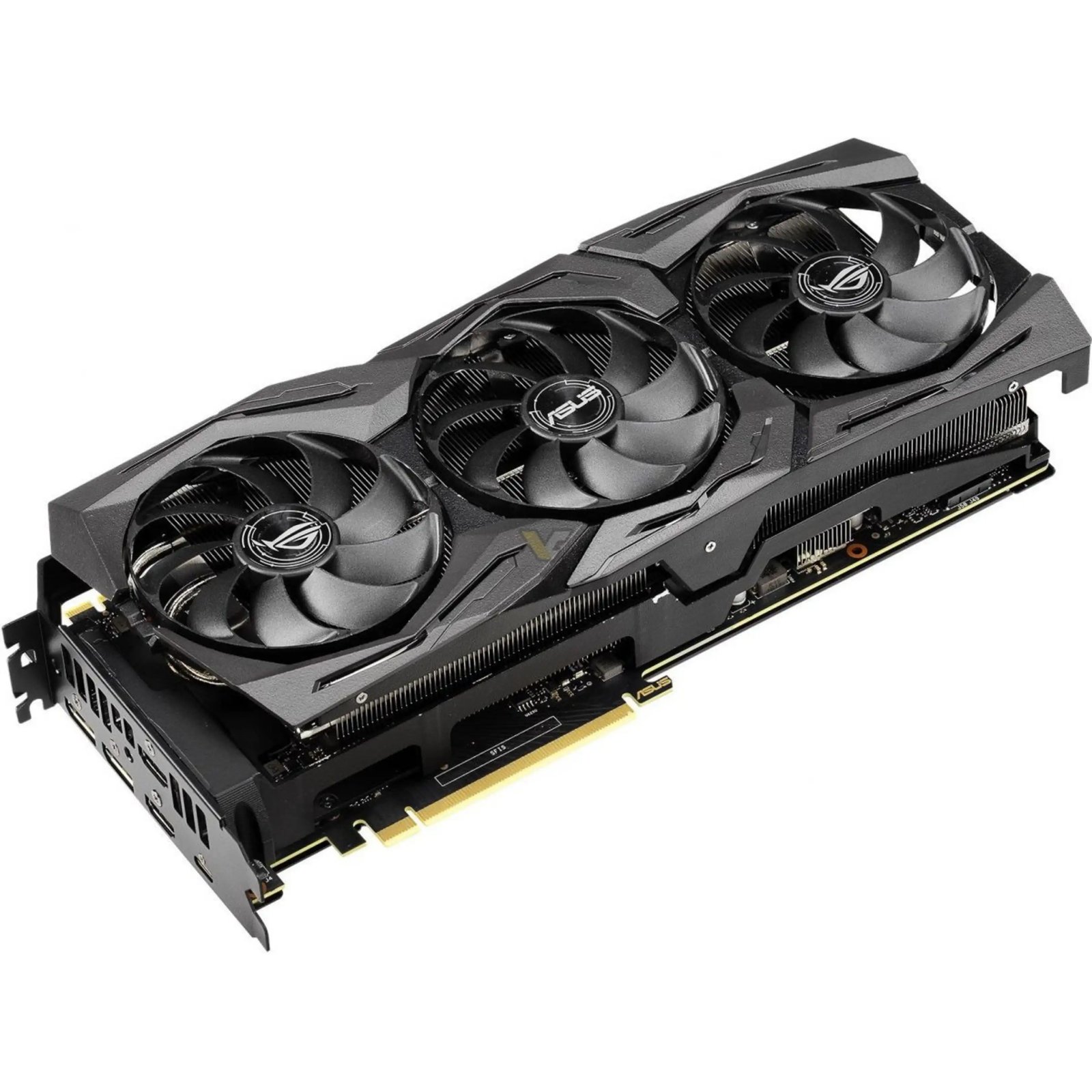

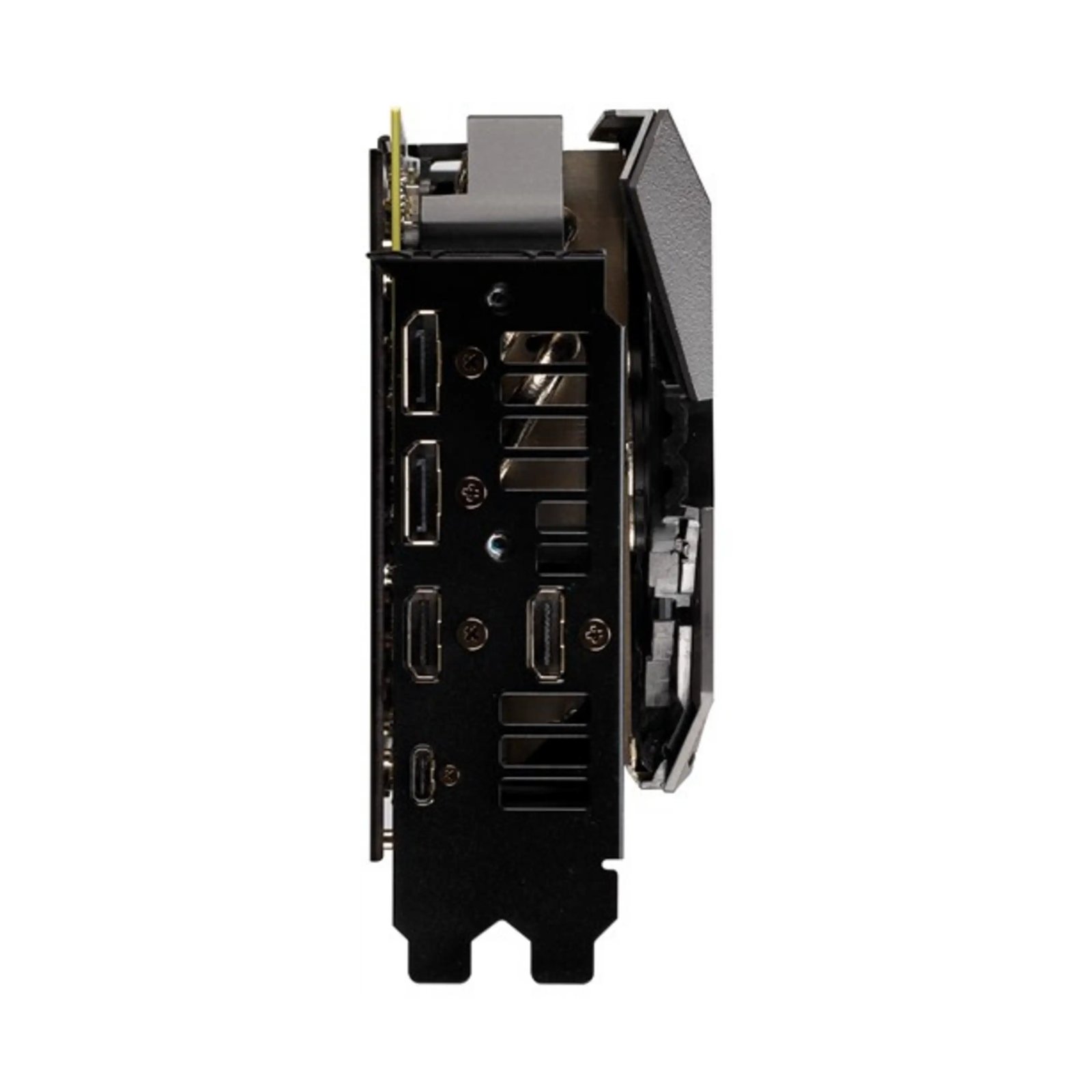

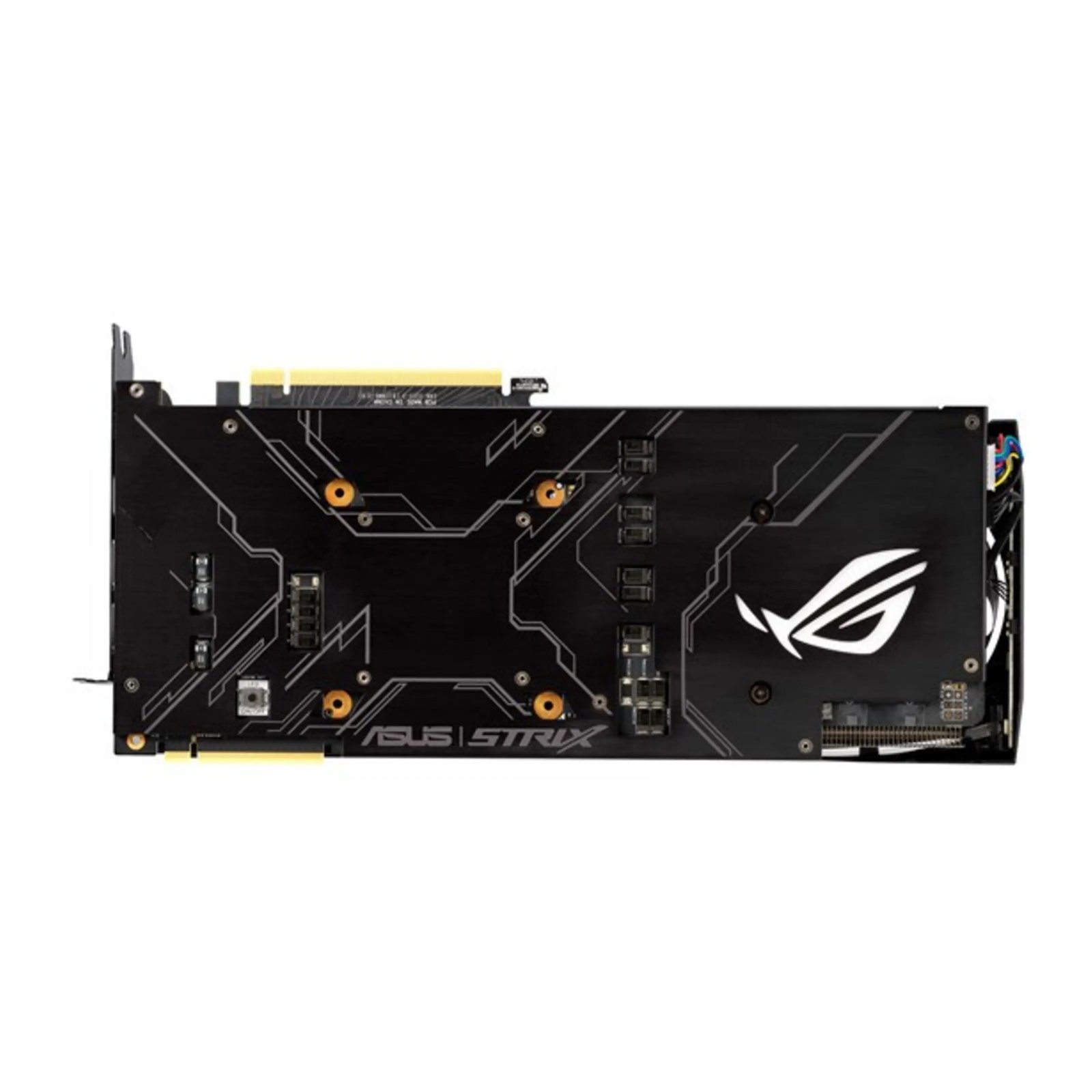

ASUS ROG STRIX RTX 2080 Ti GAMING OC product image 1ASUS ROG STRIX RTX 2080 Ti GAMING OC product image 2ASUS ROG STRIX RTX 2080 Ti GAMING OC product image 3ASUS ROG STRIX RTX 2080 Ti GAMING OC product image 4

General

SeriesRTX 20
ModelROG STRIX RTX 2080 Ti GAMING OC
ChipRTX 2080 Ti
Launch Year2018
Release Date9/20/2018
Launch MSRP$999
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureTuring
GPU DieTU102 (TU102-300-K1-A1 / TU102-300A-K1-A1)
FoundryTSMC · 12 nm
Transistors18.6 billion
Die Size754 mm²

Cores

Shading Units4352
TMUs272
ROPs88
SM / CU68
Tensor Cores544
RT Cores68
L2 Cache6 MB

Memory

VRAM11 GB
Memory TypeGDDR6
Memory Bus352-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1350 MHz
Boost Clock1650 MHz
TDP250 W
Power Connector8-pin
Recommended PSU600 W

Compute (TFLOPS)

FP3213.45 TFLOPS
FP1626.9 TFLOPS
FP640.42 TFLOPS

Display Outputs

HDMI2×
DisplayPort2×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length300 mm
Width54 mm
Height130 mm
Slot Width3 slot

Interface

PCIe Version3.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 7.5
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (6th Gen)
1x NVDEC (4th Gen)
Encoding
H.265 (4K YUV 4:2:0, 4K YUV 4:4:4, 4K Lossless, 8K)
H.264 (YUV 4:2:0, YUV 4:4:4, Lossless)
Decoding
H.265 (8/10/12bit 4:2:0, 8/10bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8/10bit)
VP8
VC-1
MPEG-2
MPEG-1
