ASUS TURBO RTX 2080 Ti

RTX 20 · TURBO RTX 2080 Ti · RTX 2080 Ti

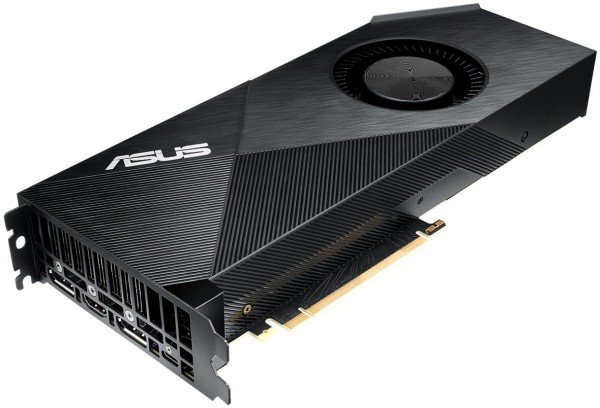

ASUS TURBO RTX 2080 Ti product image

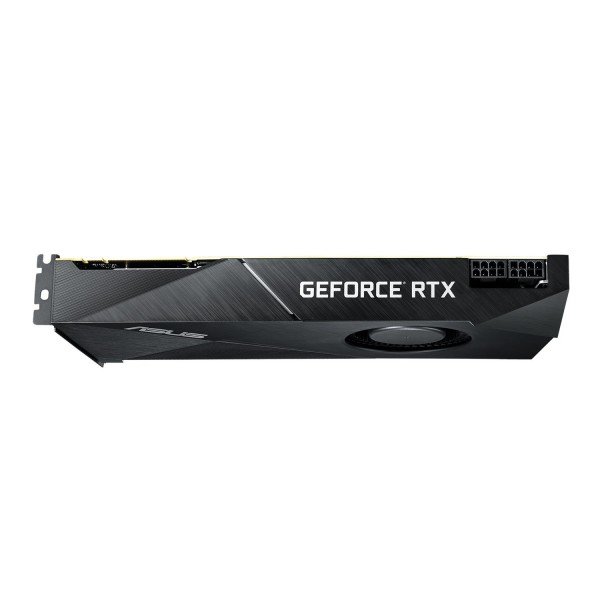

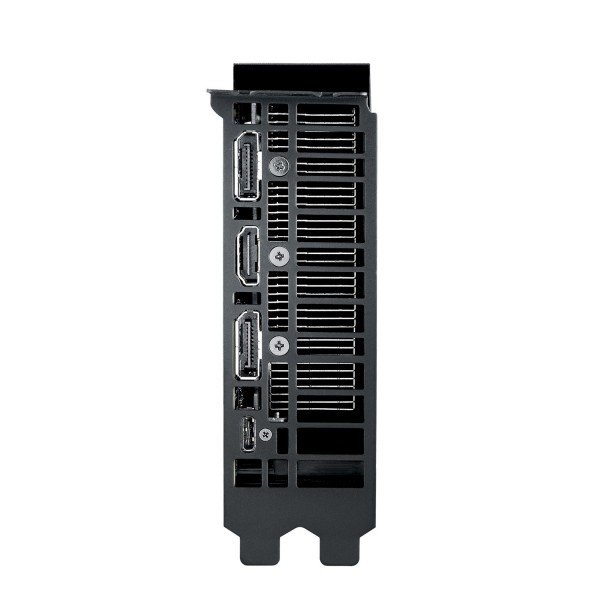

ASUS TURBO RTX 2080 Ti product image 1ASUS TURBO RTX 2080 Ti product image 2ASUS TURBO RTX 2080 Ti product image 3

General

SeriesRTX 20
ModelTURBO RTX 2080 Ti
ChipRTX 2080 Ti
Launch Year2018
Release Date9/20/2018
Launch MSRP$999
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureTuring
GPU DieTU102 (TU102-300-K1-A1 / TU102-300A-K1-A1)
FoundryTSMC · 12 nm
Transistors18.6 billion
Die Size754 mm²

Cores

Shading Units4352
TMUs272
ROPs88
SM / CU68
Tensor Cores544
RT Cores68
L2 Cache6 MB

Memory

VRAM11 GB
Memory TypeGDDR6
Memory Bus352-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1350 MHz
Boost Clock1545 MHz
TDP250 W
Power Connector8-pin
Recommended PSU600 W

Compute (TFLOPS)

FP3213.45 TFLOPS
FP1626.9 TFLOPS
FP640.42 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count1
Liquid Cooling✗ No

Physical

Length269 mm
Slot Width2 slot

Interface

PCIe Version3.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 7.5
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (6th Gen)
1x NVDEC (4th Gen)
Encoding
H.265 (4K YUV 4:2:0, 4K YUV 4:4:4, 4K Lossless, 8K)
H.264 (YUV 4:2:0, YUV 4:4:4, Lossless)
Decoding
H.265 (8/10/12bit 4:2:0, 8/10bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8/10bit)
VP8
VC-1
MPEG-2
MPEG-1
