ASUS TUF RTX 4070 GAMING OC

RTX 40 · TUF RTX 4070 GAMING OC · RTX 4070

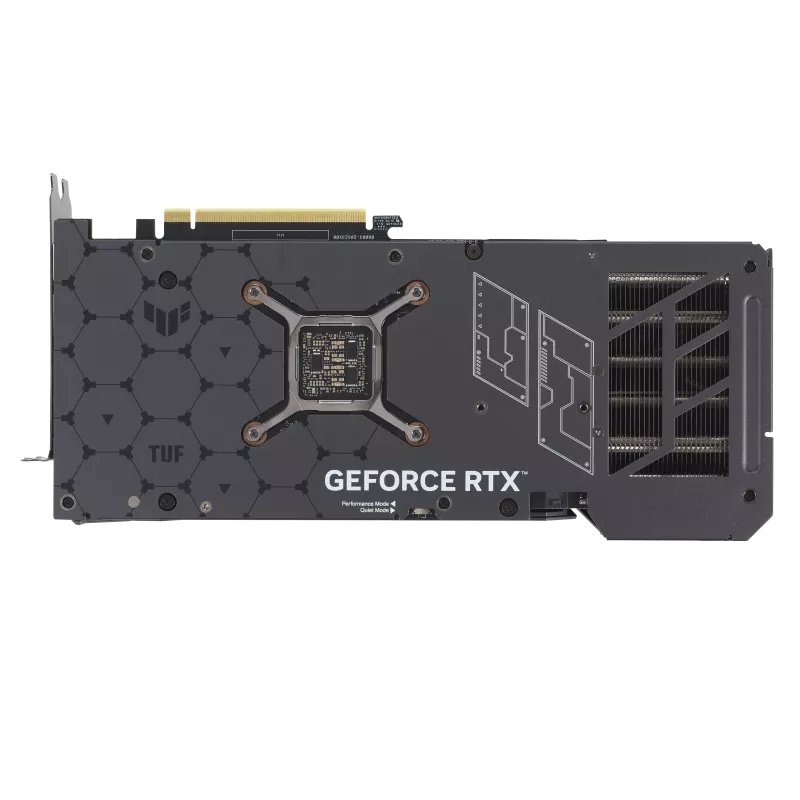

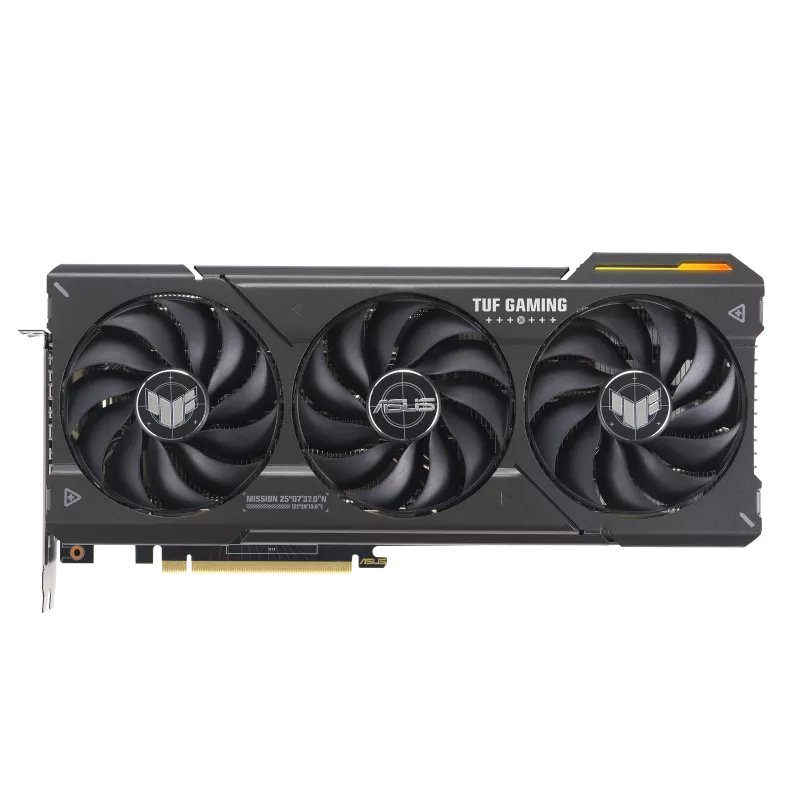

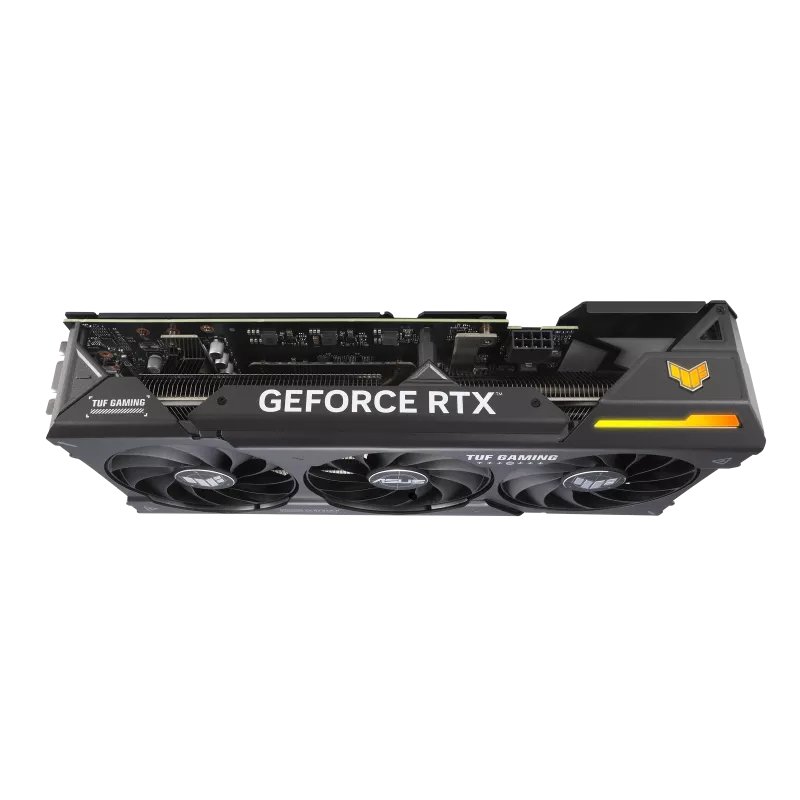

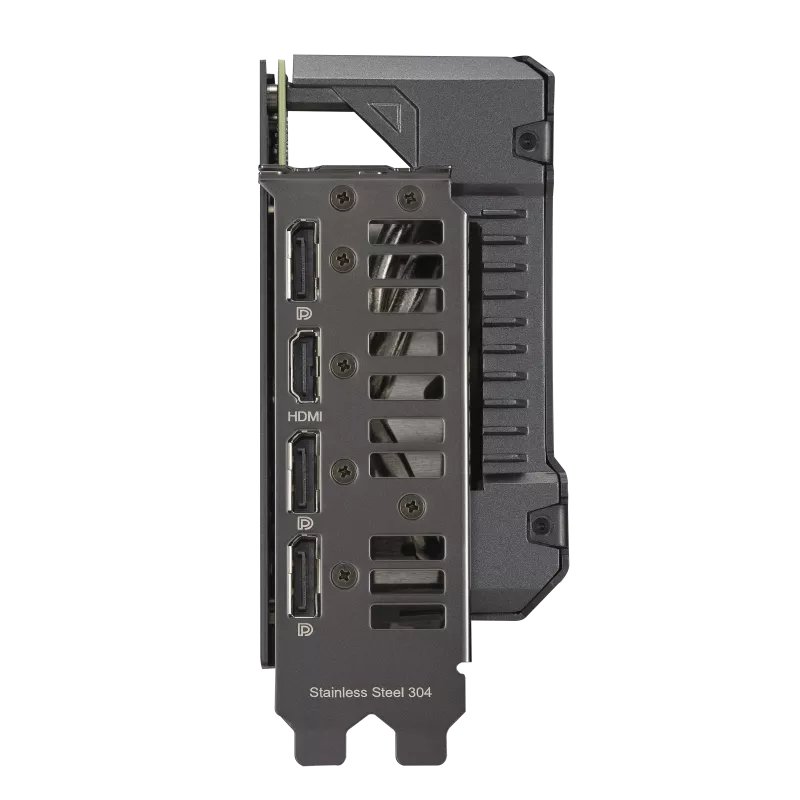

ASUS TUF RTX 4070 GAMING OC product image
ASUS TUF RTX 4070 GAMING OC product image 1ASUS TUF RTX 4070 GAMING OC product image 2ASUS TUF RTX 4070 GAMING OC product image 3ASUS TUF RTX 4070 GAMING OC product image 4

General

SeriesRTX 40
ModelTUF RTX 4070 GAMING OC
ChipRTX 4070
Launch Year2023
Release Date4/12/2023
Launch MSRP$599
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAda Lovelace
GPU DieAD104 (AD104-250-A1)
FoundryTSMC · 5 nm
Transistors35.8 billion
Die Size294 mm²

Cores

Shading Units5888
TMUs184
ROPs64
SM / CU46
Tensor Cores184
RT Cores46
L2 Cache36 MB

Memory

VRAM12 GB
Memory TypeGDDR6X
Memory Bus192-bit
Memory Speed21 Gbps

Clocks and Power

Base Clock1920 MHz
Boost Clock2550 MHz
TDP200 W
Power Connector8-pin

Compute (TFLOPS)

FP3229.15 TFLOPS
FP1629.15 TFLOPS
FP640.46 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length301 mm
Width63 mm
Height139 mm
Slot Width3.2 slot

Interface

PCIe Version4.0
PCIe Lanesx16
